    ETL MDPE Lansan GYTS Fiber Optic Cable Multimode OM3 HDPE

    Ask Lasest Price
    Brand Name : OEM/ ODM/ Lansan
    Model Number : GYTS
    Certification : ROHS/ CE/ ETL/ UL
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 20000 Meters
    Delivery Time : 10-12 work days
    • Product Details
    • Company Profile

    ETL MDPE Lansan GYTS Fiber Optic Cable Multimode OM3 HDPE


    24 Cords Steel OM3 Multimode Tape Longitudinal Layer Stranded GYTS Fiber Optical Oudoor Cable


    Structure

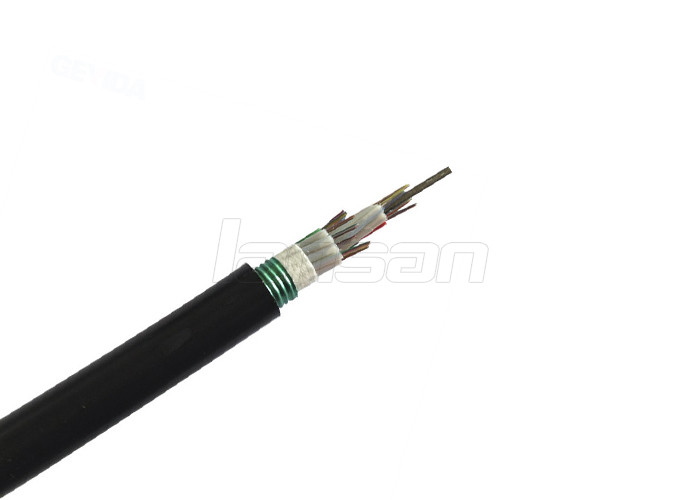

    Metal Strength member, Central tube type, gelly filled, Polyethylene(PE) sheath, PSP armor and Polyethylene(PE) outer sheath, Outer door optical fiber cable for telecommunication

    Technical characteristics


    • The unique fiber excess length control method provides the cable with excellent tension and environmental properties
    • The loose tube material itself have good water-resistant properties of solution and higher intensity, the special jelly filled in the loose tube protection the optical fiber.
    • Good pressure-resistant properties and bending properties
    • The out PE sheath provides good anti-UV radiation performance
    • Adopt the following measures to ensure the waterproof properties of fiber optical cable
    • Steel wires strengthen
    • The unique waterproof compounds filled in the loose tube
    • Safety-filled cable core
    • PSP armor structure has super crush resistance.

    Fiber
    number
    Cable diameter (mm)Cable net weight
    (Kg/km)
    Min. crush pressure
    (N/100mm)
    Short termLong
    term
    30 and below9.81071000300
    32~3610.41271000300
    38~6011.11381000300
    62~7211.91711000300
    74~8412.71841000300
    86~9613.41991000300
    98~10814.22191000300
    110~12015.02401000300
    122~13215.82601000300
    134~14416.52791000300
    Operating temperature-40~+60ºC


    Packing &delivery

    • Length: 3000m/roll, other length is available according to clients request.
    • Packing: wooden drum
    • Other packing available according to client's request
