    PE PVC Cat5e Lan Cable Bare Copper Black SFTP 24AWG 305m Twisted 4PR CCA BC

    Ask Lasest Price
    Brand Name : LANSAN/OEM
    Model Number : Cat5e
    Certification : UL,ETL,CPR,ANATEL,CE,ROHS,ISO9001
    Price : USD+20~60+305M
    Payment Terms : T/T,Western Union, L/C,
    Supply Ability : 3000000 Meter/Meters per Month
    Delivery Time : 14~20 working days
    • Product Details
    • Company Profile

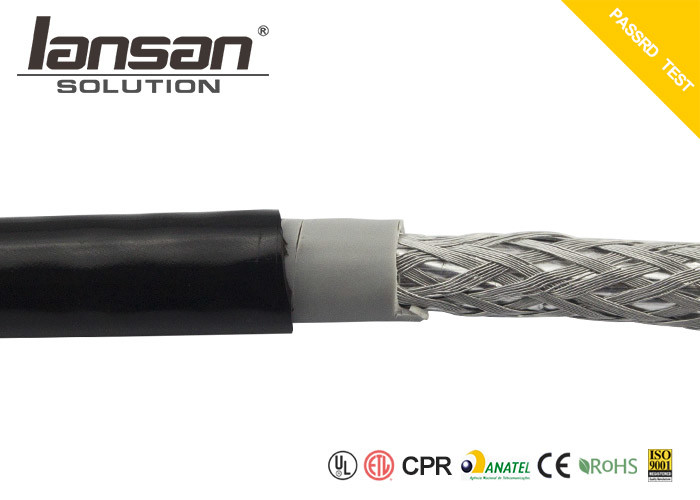

    PE PVC Cat5e Lan Cable Bare Copper Black SFTP 24AWG 305m Twisted 4PR CCA BC

    Cat5e Bare Copper LAN Cable SFTP 24AWG BC PVC+PE 305M Twisted 4PR

    Description:

    • LANSAN Intelligent Structure Cabling products.

    • Cat5e FTP 24AWG PVC+PE cable is made in flexible twisted conductor, applicable to outdoor.

    • Constructed with high-quality cable during installation and provides strain-relief.

    Easy to insert and remove cables in high density applications.

    Lots of successful project cases in worldwide finance, government buildings and other industries.


    Specification:

    ITEMCAT5E SFTP
    No. of Conductor4Pair
    ConductorMaterialBC
    Construction1 / 0.511± 0.008mm
    Insulation MaterialMaterialHDPE
    Normal Thickness0.24 mm
    Diameter0.98± 0.05mm
    Inner LayerDirectionS
    Pitch REF30mm underneath
    Outside LayerDirectionS
    Pitch REF100±20mm
    SeparatorMaterialMylar
    Coverage100% coverage with 25% overlapping
    ShieldingMaterialAl-Mylar
    Coverage100% coverage with 25% overlapping
    BraidingMaterialAluminum Magnesium alloy Solid
    Construction16/6/0.12mm 67% Coverage
    Rip cordMaterialNylon
    JacketMaterialPVC+PE
    Thickness0.55 mm
    Diameter6.2 ± 0.2 mm
    ColorOptional
    MarkingOptional
    ELECTRICAL PROPERTIES
    ITEM
    Insulation ResistanceMin.5000 mega ohms-km at 20℃
    Dielectric Test1000V DC /1 min; No Breakdown
    Temperature Rating60℃
    Voltage Rating30V

    Features:

    • Independently tested and verified by ETL

    • Humanized Design

    • Separated structure inside the cable ensures the stable transmission of data.


    Competitive Advantage:

    • For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.

    • For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.

    • For production capacity, we could produce 30 million meters cable monthly, which will assure you of prompt delivery of the goods.

    Certificates: UL/ETL/CPR/ANATEL/CE/ROHS/ISO9001.


    Our service:

    1. Q: Are you the factory or the trading company?
    A: We are the factory.
    2. Q: How long is your guarantee Period?
    A: We uaually offer 1 year guarantee for our general products.
    3. Q: How can I get the samples?
    A: You can make the sample order and pay it.
    But the samples fee will be return to you when you place the offical order.
    4. Q: Where is your factory? How can we visit your factory?
    A: Our factory is located in Shenzhen, Guangdong. You could reach here by train and by air.
    We can pick you up in the airport and the railway station.
    5. Q; What is your MOQ?
    A: It`s base on the cable type or wire type. Please contact me.
