HDPE Al Foil Twisted Lan Cable UTP FTP CCA BC With Bare Copper Conductor

SHENZHEN LIANXUN HIGH-TECH CO., LTD.& LANSAN INTL LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap HDPE Al Foil Twisted Lan Cable UTP FTP CCA BC With Bare Copper Conductor from wholesalers

    Buy cheap HDPE Al Foil Twisted Lan Cable UTP FTP CCA BC With Bare Copper Conductor from wholesalers
    • Buy cheap HDPE Al Foil Twisted Lan Cable UTP FTP CCA BC With Bare Copper Conductor from wholesalers

    HDPE Al Foil Twisted Lan Cable UTP FTP CCA BC With Bare Copper Conductor

    Ask Lasest Price
    Brand Name : OEM/ ODM/ Lansn
    Model Number : CAT6 FTP
    Certification : UL/ CE/ ETL/ ROHS/ ANATEL
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal
    Supply Ability : 5000 Box/Day
    Delivery Time : 12-15 Work Day
    • Product Details
    • Company Profile

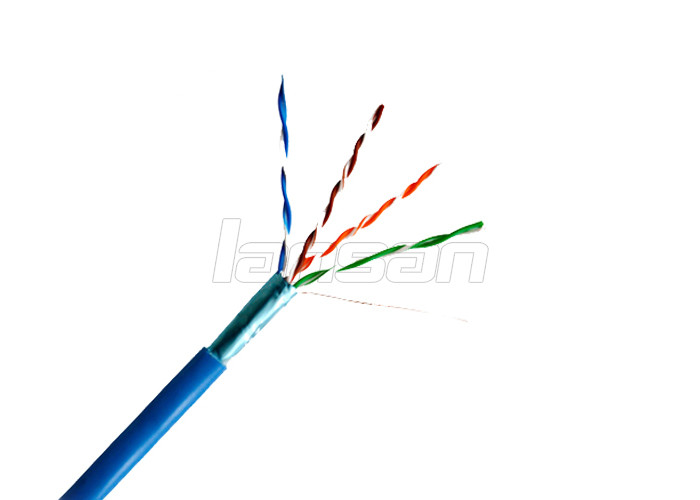

    HDPE Al Foil Twisted Lan Cable UTP FTP CCA BC With Bare Copper Conductor


    Cat6 UTP/FTP 4Pairs twisted Lan Cable With Bare Copper Conductor

    Description

    • LANSAN Intelligent Structure Cabling products include shielded and unshielded
      Cat5E, Cat6, Cat6A and Cat7 and all series of fiber optic products.

    • Widely used at Voice data, Graphic image, Multi-media, Security monitoring and other
      data transmission.

    • Combined with keystone Jack Patch cords, and patch panel, it provides
      excellent and stable performance.

    • Lots of successful project cases in worldwide finance, education, health care,
      government buildings and other important industries.

    Specification

    No. of Cord8
    ConductorMaterialBC/CCA
    Construction1/0.585 ± 0.008mm
    InsulationMaterialHDPE
    Filler/
    ShieldMaterialAI-Mylar
    Braiding/
    Drain WireMaterialAluminum Magnesium Metal
    Rip CordNylon
    JacketMaterialROHS
    O.D.6.0 ± 0.30mm
    Coloroptional
    MarkingCustomized
    Insulation ResistanceMin. 5000 mega ohms-km at 20℃
    Dielectric Test1000V DC /1 min ; No Breakdown
    Temperature Rating60℃
    Operating Temperature-20℃ ~ 80℃
    Mutual Capacitance5.8nF/100m


    Application


    • Computer Network Cabling Project.
    • Broadband Network Communication.
    • Digital ISDN Network and ATM 155Mbps Network.
    • Ethernet Network.Company Information

    Cable Packing Details


    • 300m/easy pull box/Outer Carton
    • 305m/easy pull box/Outer Carton
    • 100M/easy pull box
    • 500m/wooden reel/box
