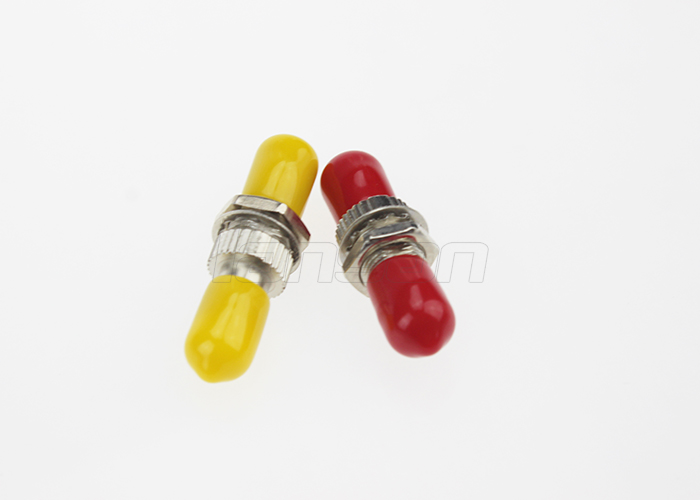

    CATV System Fiber Optic Cable Assembly OS2 Single Mode ST Fiber Optic Connector

    Ask Lasest Price
    Brand Name : LANSAN/ OEM/ ODM
    Model Number : ST
    Certification : CE/ RoHS/ ETL/ UL
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal
    Supply Ability : 100000 pcs/ day
    Delivery Time : 8 - 10 work days
    • Product Details
    • Company Profile

    CATV System Fiber Optic Cable Assembly OS2 Single Mode ST Fiber Optic Connector

    For CATV System OS2 Singlemode ST Fiber Optical Connector


    Product Description

    Fiber optic connectors are unique. Fiber cables transmit pulses of light instead of electrical signals, so the terminations must be much more precise. Instead of merely allowing pins to make metal-to-metal contact, fiber optic connectors must align microscopic glass fibers perfectly in order to allow for communication. While there are many different types of fiber connectors, they share similar design characteristics. Simplex vs. duplex: Simplex means 1 connector per end while duplex means 2 connectors per end. There are three major components of a fiber connector: the ferrule, the connector body, and the coupling mechanism.

    Applications


    • Local Area Networks (LANs)
    • Data Processing Networks
    • Premise Installations
    • Instrumentation

    Feature
    • Bayonet style housing for easy termination
    • Epoxy and epoxy-less versions
    • High precision alignment
    • Low insertion Loss
    • High return Loss

    Specifications


    ITEMPARAMETER
    Applicative Connector TypeSC,LC,FC,ST,MU,D4,DIN
    Fiber modeSingle mode
    Test wavelength1310nm, 1550nm
    Insertion Losstypical≤0.20dB,Max≤0.30dB
    Return LossUPC≥50.0dB,APC≥60.0dB
    Durability≤0.20dB typical change,1000 mating
    Applicative cable OD.∮0.9mm/∮1.8mm&∮2.0mm /∮3.0mm (MU only ∮0.9mm/∮2.0mm)
    Connector Ferrule OD.∮2.5mm:SC, FC,ST,DIN; ∮2.0mm:D4; ∮1.25mm:LC,MU
    Angle BOOTSC,LC(45 or 90 degree)
    Operating Temperature-20ºC to +70ºC
    Storage Temperature- 40ºC to +85ºC
    Ferrule Specification125.3+1/-0μm, Concentricity: ≤1.0μm
