Brand Name : | OEM/ ODM/ Lansn |
Model Number : | CAT6A UTP |
Certification : | UL/ CE/ ETL/ ROHS/ ANATEL |
Price : | Negotiation |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal |
Supply Ability : | 5000 Rolls/Day |
Delivery Time : | 12-15 Work Day |

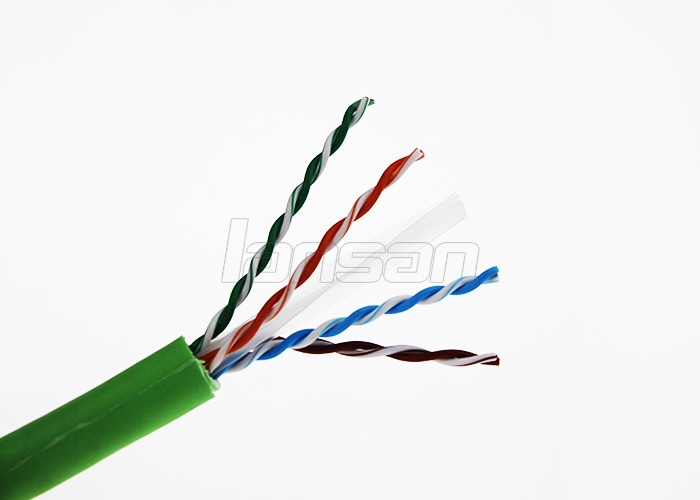

Rohs Jacket PE Insulation Cat6A Lan Cable High Speed Transmission Cable
Description
LANSAN Intelligent Structure Cabling products include shielded and
unshielded
Category 5E, Category 6, Category 6A and Category 7 and all series
fiber optic
products.
Widely used at Voice data, Graphic image, Multi-media, Security
monitoring and other
data transmission.
Combined with keystone Jack Patch cords, and patch panel, it
provides
excellent and stable performance.
The solution is for hospital, government manufacturingand other environments.
Specification
No. of Cord | 4 Pairs | |
Conductor | Material | BC |
Construction | 23AWG 1/0.57± 0.006mm | |
Insulation | Material | HDPE |
Filler | / | |
Shield | Material | / |
Braiding | / | |
Drain Wire | Material | / |
Rip Cord | Nylon | |
PE Cross | Material | Polyethy Lene |
Construction | 4.4mm*4.4mm | |
Jacket | Material | ROHS |
O.D. | 7.6 ± 0.3mm | |
Color | Customized | |
Marking | Customized | |
Mutual Capacitance | 5.8nF/100m | |
Dielectric Test | 1000V DC /1 min ; No Breakdown | |
Temperature Rating | 60℃ | |
Operating Temperature | -20℃ ~ 80℃ | |
Velocity of Propagation | 0.69 |
