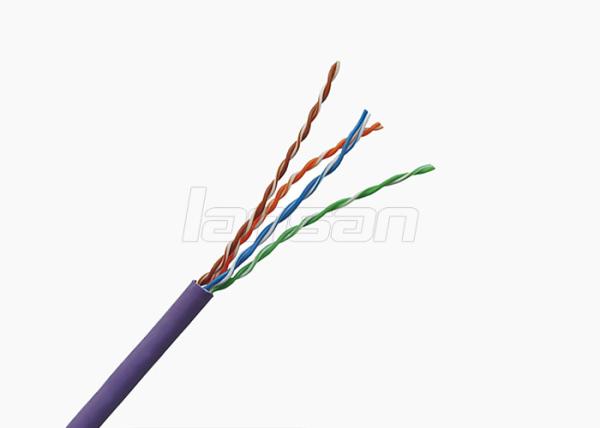

    CCA Indoor Unshielded Cat5e Lan Cable 4 Pairs 24AWG 0.5mm CCA For Multi Media

    Ask Lasest Price
    Brand Name : OEM/ ODM/ Lansn
    Model Number : CAT5E UTP
    Certification : UL/ CE/ ETL/ ROHS/ ANATEL
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal
    Supply Ability : 5000 Box/Day
    Delivery Time : 12-15 Work Day
    • Product Details
    • Company Profile

    CCA Indoor Unshielded Cat5e Lan Cable 4 Pairs 24AWG 0.5mm CCA For Multi Media


    CCA Indoor Unshield Cat5e PVC Lan Cable 4Pr 24AWG 0.5mm CCA High Speed

    Description

    • High-Performance data cable ,application structured cabling, CCTV system , Alarm system , Telecom project etc.
    • Exceeds TIA/EIA-568B.2,ISO/IEC 11801 , ETL listed .
    • 100Base-TX,100Base-T2 and 100Base-T4 standard.
    • Can be used for voice, integrated service data network (ISDN).
    • Long transmission distance, small transmission loss, wear resistance, resistance to pressure.


    No. of Cord4 Pairs
    ConductorMaterialCCA
    Construction1/0.50 ± 0.008mm
    InsulationMaterialHDPE
    Filler/
    ShieldMaterialAI-Mylar
    Braiding/
    Drain WireMaterial/
    Rip CordNylon
    JacketMaterialPVC
    O.D.5.1 ± 0.30mm
    ColorCustomized
    MarkingCustomized
    Insulation ResistanceMin. 5000 mega ohms-km at 20℃
    Dielectric Test1000V DC /1 min ; No Breakdown
    Temperature Rating60℃
    Operating Temperature-20℃ ~ 80℃
    Voltage300V


    Features

    • Independently tested and verrified by ETL
    • Humanized Design
    • Full series Keystone Jack supported
    • Quick Installation design avaiable
    • Feature different strand lay-length, keeping good NEXT and FEXT, anti-electromagnetic disturbimprovement .
    • Structure bare copper, PE insulation, FR PVC/LSOH PVC jacket, twinning structure, flexible added, easily cabling.
    • Telephone cable trunk transmission .
    • High-performance data cable,application structured cabling ,CCTV system ,Alarm system,Telecom project etc.
    • Can be used for voice ,integrated service data network.

    CCA Indoor Unshielded Cat5e Lan Cable 4 Pairs 24AWG 0.5mm CCA For Multi Media
